Diamant Master Guided Session #1
•
DmmGS01 - 11/33

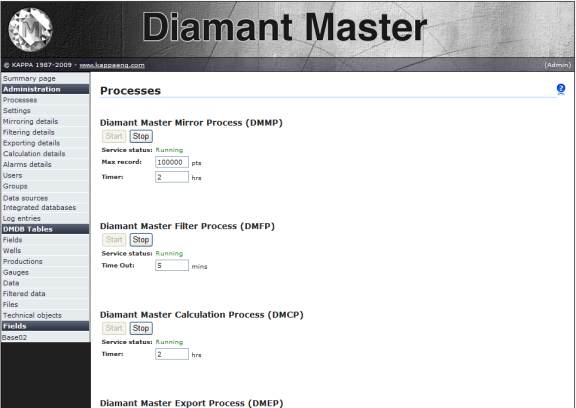

The 'Mirroring details' page shows the progress of the mirroring of all the gauges, the current
number of mirrored points, the number of new points to be mirrored. It gives the possibility by
right-clicking on the icon to Stop or Start the mirroring process of any gauge.
E.3
Creating a filtered data and lock for edition
E.3.1
Creating a filtered data
Even if the gauge (mirror) contains the full set of data points, this large number of data is not
adequate for analysis. It is then absolutely necessary to filter these data to get a reduced and
representative subset of points for analysis purposes.
The filter must reduce the number of points, respect the information and have a frequency
adapted to the needs (i.e. PTA or PA). All these properties are obtained in the same process,
based on a wavelet algorithm, acting as a high pass filter around the pressure breaks and
acting as a low pass filter for the rest of the data.
The filtering process includes a first denoising phase and then a post filtration where the
number of points is reduced according to criteria, versus time and pressure change, adapted to
the objective.
This filter typically divides the number of points by 100 without losing significant information.
¾
Right-click on the gauge
, a pop-up menu is displayed.
