Diamant Master Guided Session #1
•
DmmGS01 - 10/33
E.2
Getting details on the mirroring process using the DMC
The DMC (Diamant Master Controller) can be launched from the client station for monitoring
the various processes.
¾
Input
in your Internet Explorer.
You may be asked for downloading an ActiveX. It is necessary to manage the processes and to
display their status. You will be prompted only once, if the required ActiveX is not present or if
its version is too old.

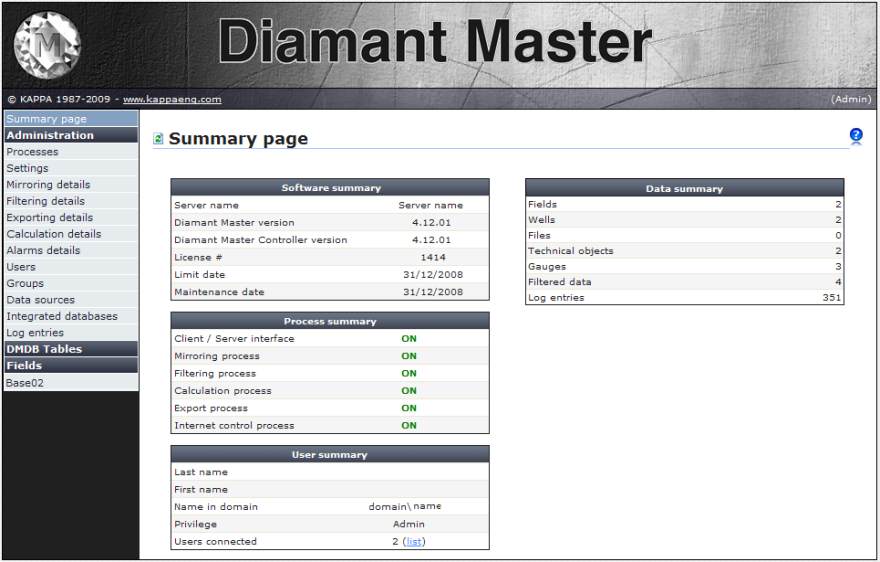

The 'Summary' page displays the information about the server, the users, the field and data on
the DMS and about the status of the various processes.
The 'Processes' page can be accessed only with the Administrator privileges.
It allows to visualize and to modify the DMMP (Diamant Master Mirroring Process) settings.
The
Timer value
is the interval between two Updates of the mirror with the 'new' incoming
data from the 'Raw Database'.
The
Max Record
(i.e. 100000 pts) is the number of downloaded points during each query.
If various gauges are to be updated simultaneously that will be done, gauge by gauge,
by subsets containing 'Max Record' points (i.e. 100000 pts).
