Rubis Guided Session #4
• Rub
GS04 - 4/15
12 -
Create a sector ( ) in the region containing Prod 1:

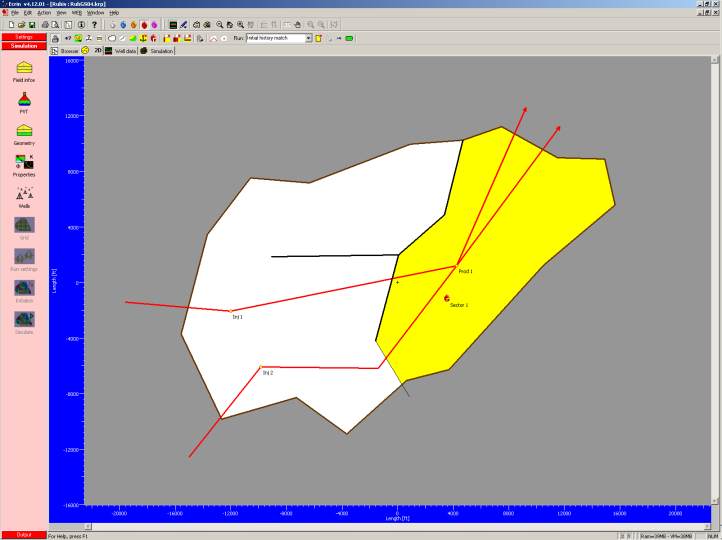

Fig. B01.6 • 2D view of the reservoir after creation of the sector
Double-click on the sector to enter the sector edition dialog:

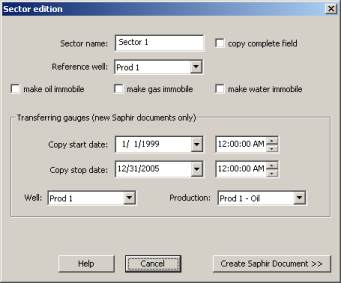

Fig. B01.7 • Sector edition dialog
