Rubis Guided Session #4
A01 • Introduction
The Rubis Guided Session #2 illustrates how a model built in Topaze can be dragged over to
Rubis, extended and copied back to Topaze. The present guided session will illustrate further
the interaction between Rubis and the other modules of the Ecrin workstation: this time, a
sector model will be created, copied over and analysed in Saphir, and the interpretation results
will be used to improve the history match in Rubis.
A basic knowledge of both the well test analysis concepts (deciphering a log-log plot, for
instance) and the basic Saphir options is required. In addition, it is assumed that an active
Saphir NL licence is available in addition to the Rubis licence.
Key functionalities presented: creation of a sector in Rubis, drag & drop to Saphir,
use of the Rubis sector in Saphir, multi-run document, results comparison between
runs.
B01 • Creating the Rubis Sector
B01.1 • Motivation for a Rubis sector analysis
Load the file “RubGS04.krp”:

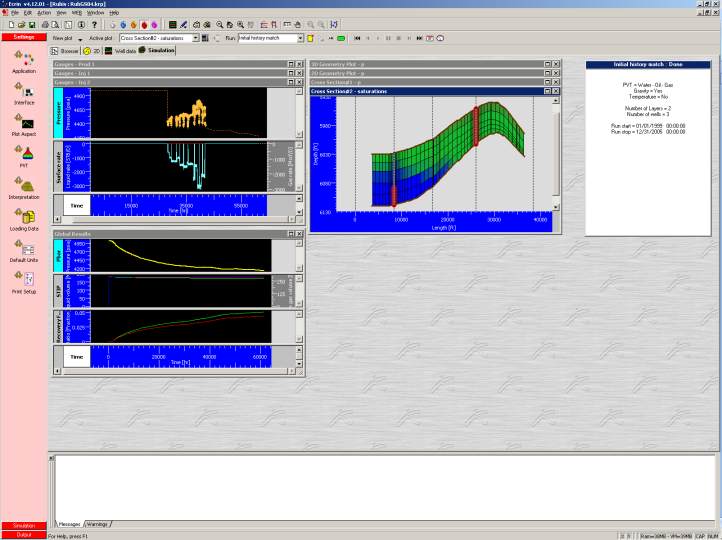

Fig. B01.1 • RubGS04.krp file content
