Rubis Guided Session #2
• Rub
GS02 - 7/16
B02 • Extending the Model in Rubis
B02.1 • Modifying the Model
Because the previous model was generated in Rubis after a drag and drop from Topaze it
followed the Topaze modeling hypotheses: no gravity, and as a result an isotropic initial state
(same initial pressure throughout the reservoir, constant initial fluid saturations).
Click on the Field Infos icon to edit the Reservoir – Field Infos dialog:

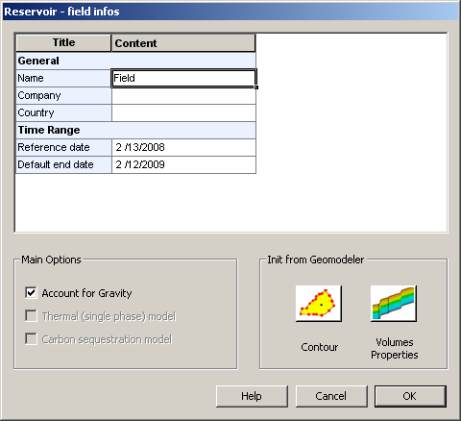

Fig. B02.1 • Reservoir - Field Infos dialog
Check the button “Account for gravity” and exit with OK.
Click on “Properties” in the “Simulation” page to edit the “Reservoir – Properties” dialog:

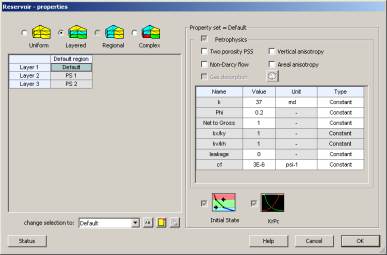

Fig. B02.2 • “Reservoir – Properties” dialog
