Rubis Guided Se
Edit the KrPc properties and check the “No
extrapolation” box in the “Kr Data” tab:
In the same tab click on the “Load” button next to the
model selection, in the “Water-Oil” frame:
In the following load dialog, select the file
“RubGS02_WO_Kr.asc”, and load “Krwo(Sw)” and
“Krow(Sw)” accordingly:
Repeat the same operation with the “Oil-Gas” system
and the file “RubGS02_OG_Kr.asc”:

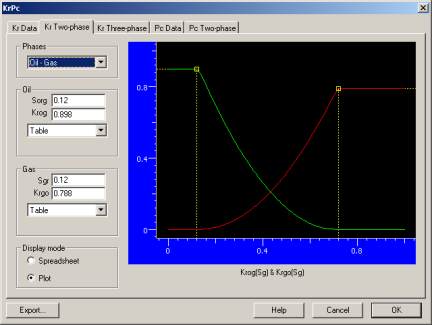

Move to the “Kr Two-phase” tab to visualize the loaded “Water-Oil” and “Oil-Gas” relative
permeabilities:
Fig. B02.3 • Water-Oil and Oil-Gas relative permeabilities
Edit the “Pc Data” tab. Change the “PcMax” value of
the “Water-Oil” system to 3 psia:
Click on OK to validate the changes.
