Rubis Guided Session #2
• Rub
GS02 - 5/16
Proceed with the “Run Settings” option – here too you may accept all defaults. “Initialize” the
model and finally click on “Simulate”:

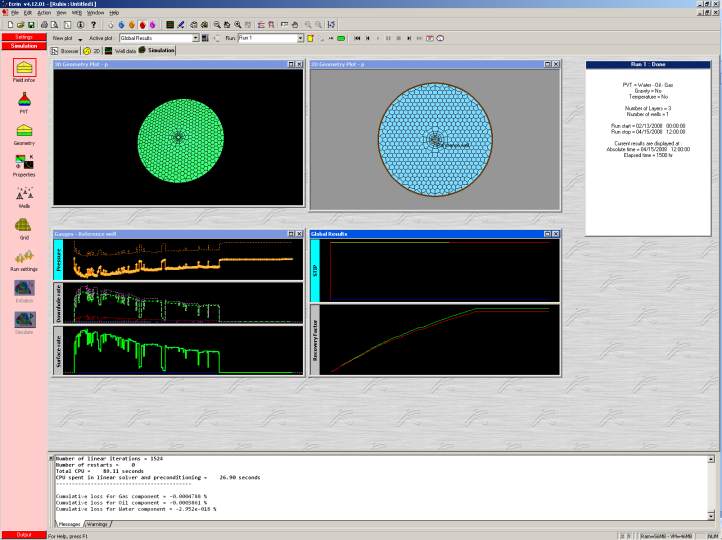

Fig. B01.7 • Simulation is complete
Maximize the “Gauges” plot and double-click inside the “Pressure” plot to maximize it:

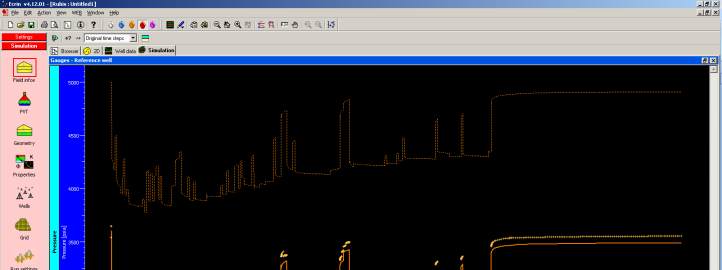

Fig. B01.8 • Bottomhole and surface well simulated pressures
