Rubis Guided Session #2
• Rub
GS02 - 4/16
In Rubis move to the “Well Data” tab in order to check that the Topaze oil rate and surface
pressure gauges have been correctly transferred:

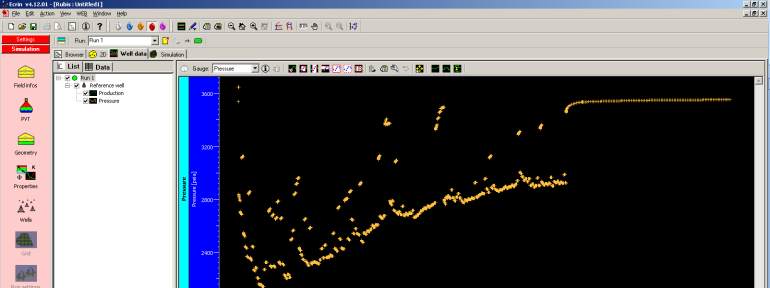

Fig. B01.5 • Well data tab
Click on the “Grid” button in the “Simulation” page and accept all defaults in the “Simulation –
Grid” dialog to generate the 3D geometrical grid in Rubis:
Fig. B01.6 • Simulation – Grid dialog
