Topaze Guided Session #3
•
TopGS03 - 14/16
B05 • Creating a Field Profile
We will now build a profile for the gas production over the entire field, now that the various
wells have been analyzed in one way or another.
Go to the Multiwell tab, and expand the ‘Field Profile’ node at the bottom of the tree:
Select the GAS sub-node and right click to select the ‘Create/Edit’ option leading to the Field
profile dialog:

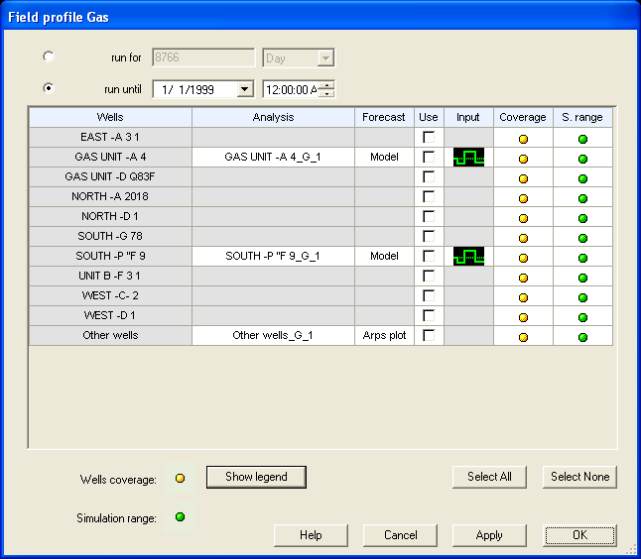

Fig. B05.1 • Field profile dialog
This dialog controls the various input used for building the field profile, as well as the extension
of the profile (until when it should be run). All wells are listed in the first column; in front of
each well are recalled all analyses using this given well as reference; then for each analysis a
list of possible ways to create an individual forecast (model if any + all analysis Arps plots) is
provided in the third column. Extend the current field forecast date from 1999 to 2002:
