Topaze Guided Session #3
•
TopGS03 - 13/16
Extract the data between 6523 and 8766 days of production. Because pressure data are
missing (they do not make much sense here…), only an Arps plot is created upon extraction.
Adjust the Arps parameters to obtain the following (approximate) match:
Fig. B04.4 • Approximate Arps match on the group gas production data
Go back to the Multiwell tab and select the analysis node to visualize the current Arps match in
plot and/or tabular format:

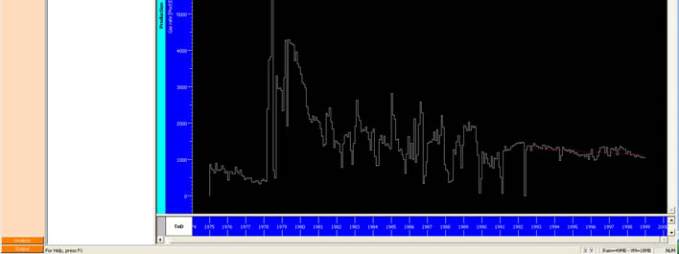

Fig. B04.5 • Visualizing the Arps match in the Multiwell tab
