Saphir Guided Session #7
• SapGS07
- 10/10

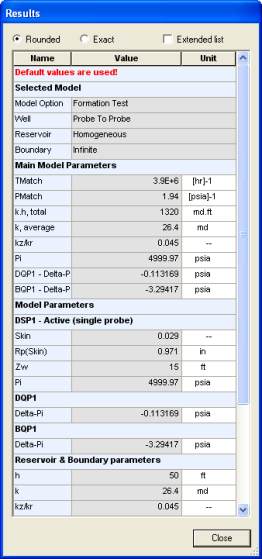

Double-click on the status window to view the
results:
As shown opposite, the final match was
obtained with a permeability of 25 md, and
k
z
/k
r
= 0.05. Note the slight changes in initial
pressure for each gauge: from Pi = 5000 psia
for the active gauge to 4997 psia for BQP1.

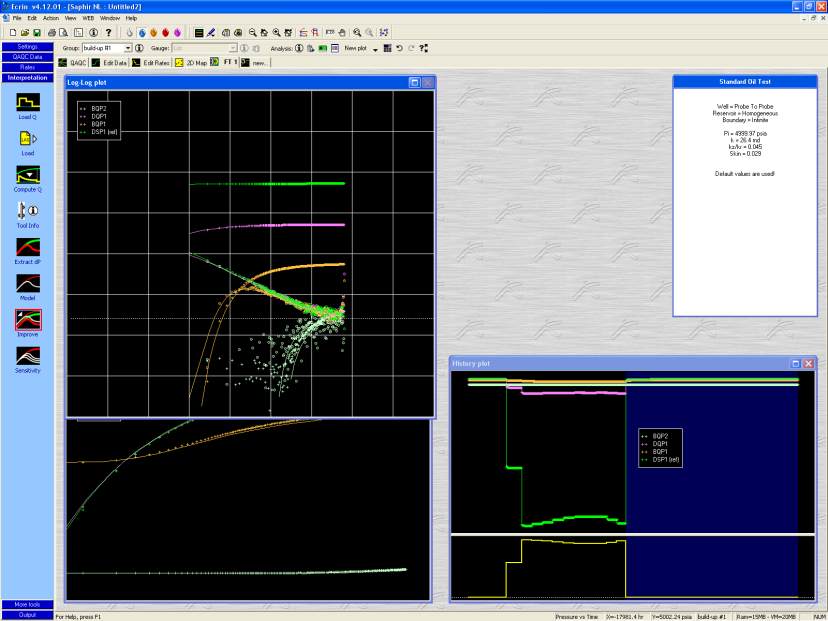

As a last confirmation, include back BQP2 in the extraction (Extract dP dialog) and accept to
re-generate the model to confirm that at least the BQP2 match is not inconsistent with the
result obtained so far:
Fig. B02.7 • Final Match Obtained on All Pressure Gauges
