Saphir Guided Session #7
• SapGS07
- 9/10
B02.3 • Improve
In order to obtain a better match, click on Improve ( ) and in the following dialog make
sure that Z
w
is not included in the improved parameters list:

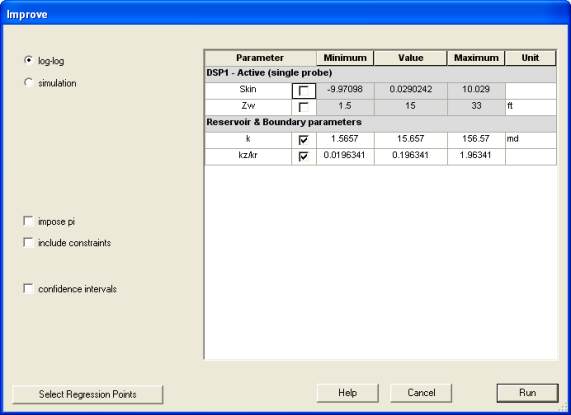

Fig. B02.5 • Improve Dialog
Accept all other default choices and click on Run - this will launch a non-linear regression on k
and k
z
/k
r
, and on the 3 extracted gauges DSP1, DQP1 and BQP1 at once. A very good match
should be obtained after a few iterations:

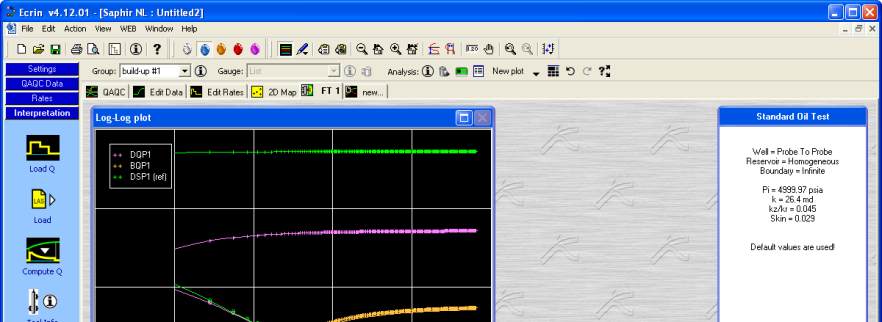

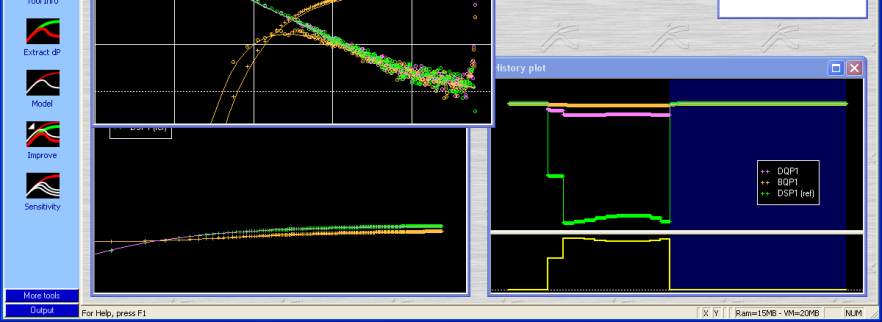

Fig. B02.6 • Match Obtained After the Improve
