Saphir Guided Session #1
• Sa
pGS01 - 3/12
B01 • Loading data
B01.1 • Loading rates
. This will init
Click
ialize the load sequence which is usually a sequence of two dialogs.
Specify an ASCII file in the 'Define data source' dialog and click on to browse to the file
SapGS01.rat in the Example directory. A preview of the file will be shown in the dialog as
illustrated in Figure B01.1.

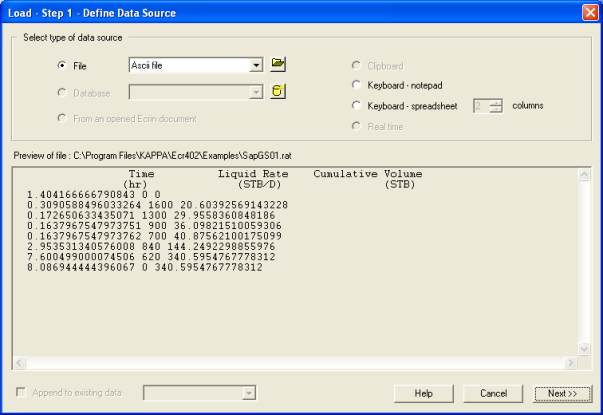

Fig. B01.1 • Load step 1 – Define data source
lick
to go to
ed the file as valid and
gned the first column as 'Decimal Time' and the second as 'Oil Rate'. This
the Data Format dialog. Saphir has recogniz
C
has automatically assi
is known as 'free format'. The units are correct so no need to change the formatting proposed
by Saphir. See Figure B01.2.

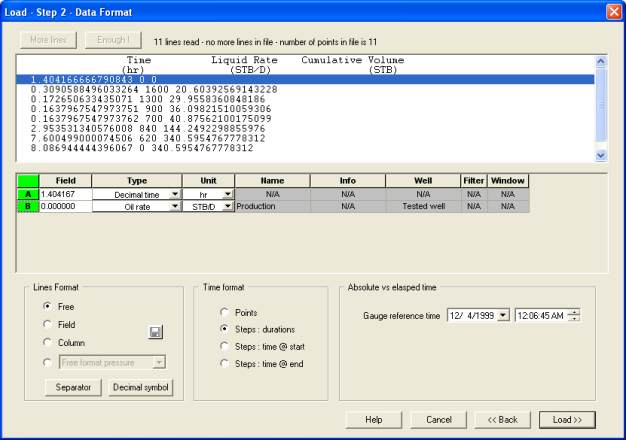

Fig. B01.2 • Load step 2 – Data Format
