Diamant Master Guided Session #1
•
DmmGS01 - 26/33
E.6.4
Corrected Production
¾
Click right on the well# 1 node and
select the option ‘Create/Reset
corrected production’.
¾
Keep the default setting in the dialog:
¾
Press ‘OK’.
¾

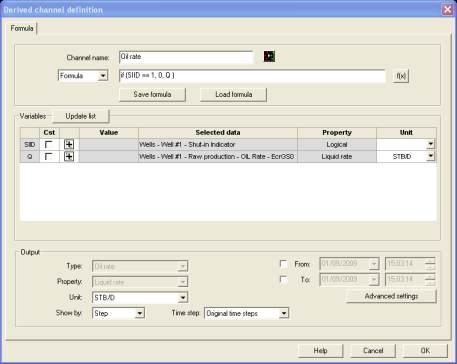

The created ‘Corrected data’ is in fact a pre-defined derived channel (explained below),
its equation can be seen by double clicking on the ‘oil rate’ channel under the ‘corrected
production’ node (expand the node to see the ‘oil rate’ channel):
Derived channel definition
Set the ‘corrected production’ oil rate curve in
red.
In this particular case, the channel is defined in such a way that the resulting ‘corrected
production oil rate’ channel is set strictly to Zero whenever a shut-in is detected in the build-up
indicator channel, and will leave the rate as it is originally in ‘raw production’ anywhere else.
