Ecrin Guided Session #1
• Ecr
GS01 - 6/37
Click on the 'Oil Rate' node in the browser
and right-click. From the 'OIL Rate' popup
menu select 'Load…'. See Figure opposite.
We will load the full rate history comprising
3 MM points (EcrGS01-Rate).
Load - Step 1: Define Data Source
Click on the Database icon to create a BLI data source definition, below left, Figure C01.4.

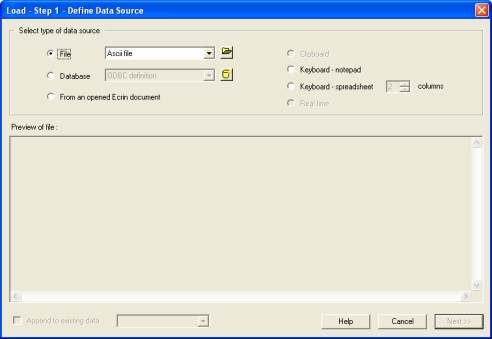

Fig. C01.4 • Load – Step 1

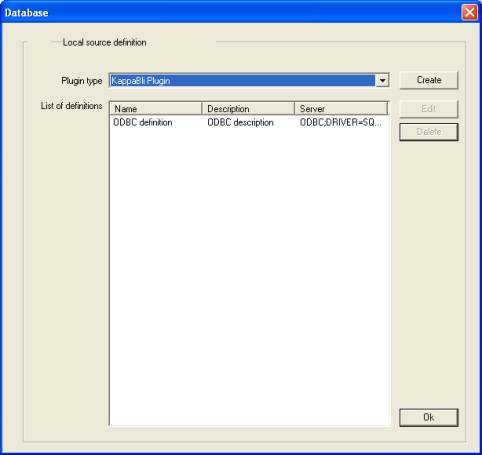

Fig. C01.5 • Data Source definition
From the Plugin type drop down menu, select the 'KappaBli Plugin' type and press 'Create',
Figure C01.5.
