Diamant Master Guided Session #1
•
DmmGS01 - 1/33
Diamant Master Guided Session #1
A
Diamant Master overview
Before proceeding in the tutorial itself, it is necessary to go through the description of the
Diamant Master architecture and organization.

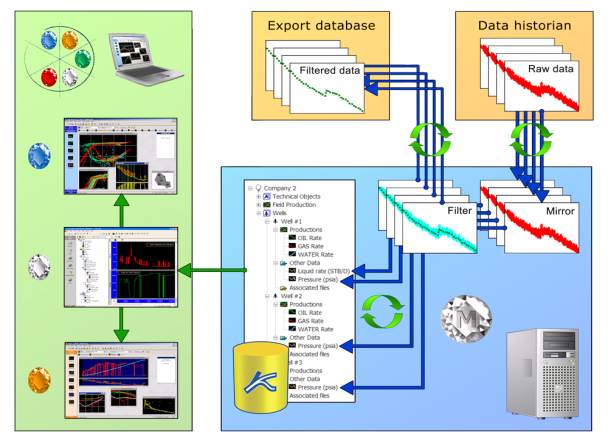

Diamant Master workflow
Diamant Master
is a server solution installed on a dedicated machine, it permanently mirrors
the raw data (Historian database) for fast processing, reduces the number of points with
wavelet based filtration, stores and shares the filtered data and exports filtered data sets to
third party databases.
The
DMC
(Diamant Master Controller) is used to configure the settings of Diamant Master
(mirroring, filtering, users’ privilege).
The
Diamant Master
Client module in Ecrin, on the other hand, operates Diamant Master and
transfers the data and the technical objects between Diamant Master and the Ecrin analysis
modules.
The DMC can also be used by the client to monitor on-going processes in Diamant Master
(mirroring process, filtering process).
