C01.4 • Pressure Data Update
We will now proceed and update the partially loaded pressure. You can update a data set in
two different ways:
•
Right click on EcrGS01-Pressure data set node, and select the 'Update' option
from
the popup menu or from the plot toolbar, or
•
In the main toolbar, click on the 'Update All' button
, the update process will be
triggered provided EcrGS01-Pressure has its 'Dynamic Update' flag set to 'ON'. Right
click on
and select the option 'Set Dynamic Update ON'.
will then
display a green play mark which means that it can be dynamically updated.
You can also access the Data 'Properties' option by right clicking on the node to choose the
option 'Properties' from the popup menu. Set the 'Status' option to 'ON' by clicking on 'OFF'
which will open the combo box allowing the selection.
In this case, Diamant will scan through the document to update ALL the data sets for which the
'Dynamic Update' flag is set to 'ON'.
Choose to update the pressure data set using the popup menu. Diamant will scan through the
file (the path is stored for each specific data set) and start the loading process from the last
recorded data point (Figure C01.22). The last filtration parameters used during the previous
load have been memorized and are used. Validate with OK and at the end of the process,
Diamant reports a summary of the data update (Figure C01.23).

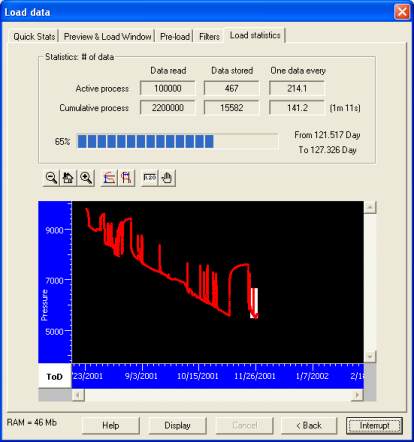

Fig. C01.22 • Load from last
recorded point
Fig. C01.23 • Update Data Summary
The 'Well #1' view plot displays the entire pressure data set as one can see on Figure C01.24
below. If the entire pressure data are not displayed, click on the Zoom reset icon .
