Diamant Guided Session #1
•
DmtGS01 - 15/18

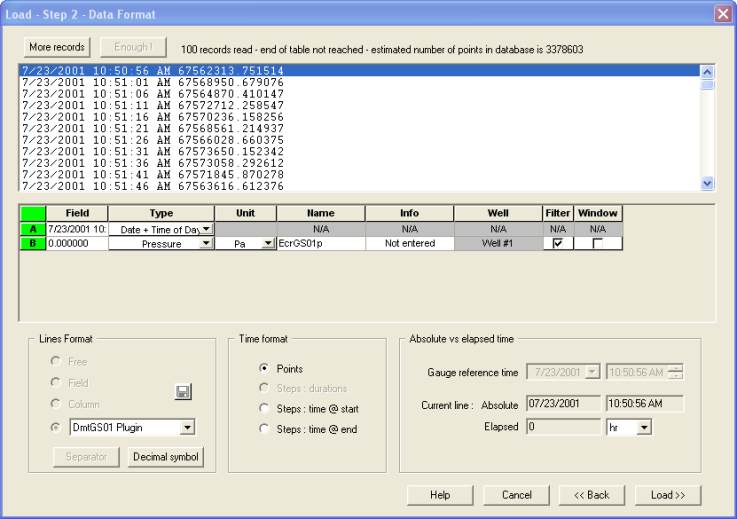

Fig. C01.19 • Data Format - Pressure
When the filtering dialog appears continue to click
and accept the defaults until the
'Filters' tab is displayed. The option 'Intermediate approach (15 sec)' is already checked, leave
the filter settings as their defaults suggested by Diamant. Check the post-filtration with
defaults, click the 'TEST' button, and then proceed to
.
For the sake of illustrating the 'Dynamic Update' option in Diamant, we will
the
loading process, approximately half way before completion. This time, do not resume loading
after the interruption, but choose the 'Stop but keep current data' option.

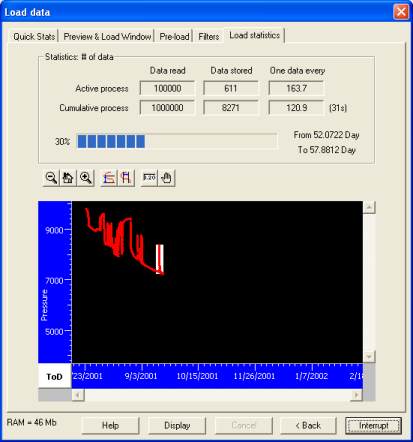

Fig. C01.20 • Loading Pressure
