Diamant Guided Session #1
•
DmtGS01 - 10/18
Load - Step 2: Data Format
When selecting the BLI File, the content of the file is displayed.
An estimate of the total number of points is given (top text line). When this number exceeds
the value set in the Settings the 'Filter' option is automatically checked, as in Figure C01.9.

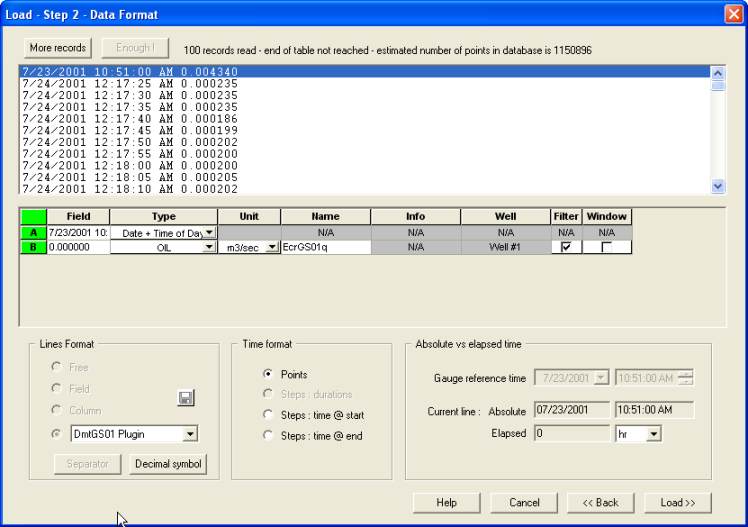

Fig. C01.9 • Loading the OIL Rate
Make sure that “unit” and “type” are consistent and start the load
. Diamant scans
one point every 1000 (this parameter can be changed in the 'Loading Data' option in the
'Settings' control panel).
Load - Step 3: Filtration Process
Once the initial scan is completed, Diamant displays the filtering dialog which allows the
following steps defined in the various tabs.
•
Input file statistics
•
Preview and Load Window
•
Pre-load
•
Filters
•
Load
For quick statistics, if you want to change the scanning scheme set in the 'Settings' panel
(in this case one every 24 hours), check/enter the desired sampling rate ('Re-calculate Quick
Stats scanning one data every...'), before clicking on the corresponding calculate icon. The
software reads the file at the appropriate sampling rate and stores this sample in memory.
On this basis, an estimate of the number of points, and the spanned intervals (X&Y) are made.
The next figure illustrates the results of this step.
