Ecrin Guided Session #1
• Ecr
GS01 - 35/37
By dragging the Saphir project directly to Topaze, the Topaze file has used the simplified rate
history that was prepared in Saphir. As Topaze is a production analysis tool it is best to have
many points describing the production, thus it can use the original rate file loaded in Diamant.
In the Browser
, activate the required opened documents, then drag and drop the oil rate
from the Diamant project to the Topaze session, as illustrated in Figure F01.3.

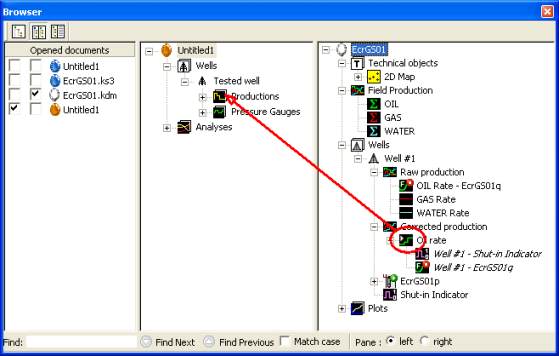

Fig. F01.3 • Browser, drag and drop the 'Corrected OIL Rate' from Diamant to Topaze
Because the rate data are very flat at the beginning, it is
necessary to
start the time range to 25/07/2001 at
12:30:00 am.

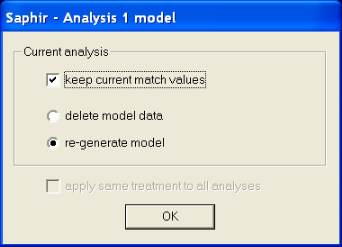

Be sure to 'Keep the current match values' before
re-generating.
Close the Browser.
Click on the Model button
, check generate q(p), p(q) and single step response.
Uncheck the fast model option if selected. Adjust
pi to 9800 psia
(if you check the pressure
gauge this is closer to the starting values).
Click 'Generate', the final results are obtained, as displayed in Figure F01.4 (for the sake of
ease of reading, several plots were deleted, others rescaled).
