Ecrin Guided Session #1
• Ecr
GS01 - 33/37
Looking at the history plot and the build-up#15 shows the necessity to close the reservoir
system completely. See Figures E01.13 a&b.

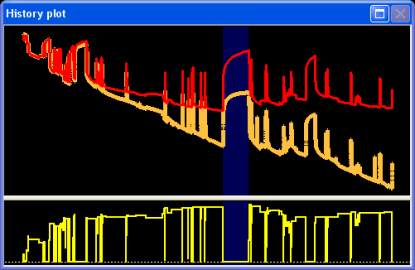

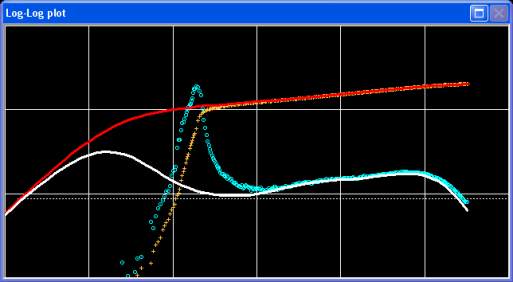

Fig. E01.13
a&b • Model displayed on loglog for Build-up #15 and history plot
The challenge is now to change the model to a closed rectangle and vary the distance to the
two other closed boundaries until a match has been obtained. For the sake of demonstration,
the final match in this guided session is a rectangle with the following distances to the closed
boundaries:
South
950 ft
East
4700 ft
North
20,000 ft
West
12,000 ft
In the 'Model' dialog, select 'Rectangle' as boundary model and input the above distances.
Generate.
The Final match is shown in Figure E01.14.

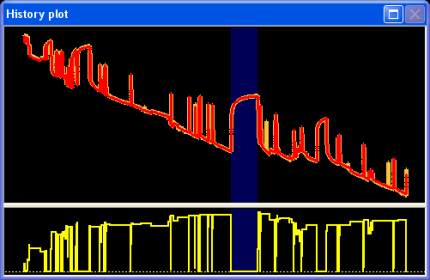

Fig. E01.14
• Final match
