Ecrin v4.12 - Doc v4.12.02 - © KAPPA 1988-2009 Rubis Guided Session #3 • RubGS03 - 8/22
Edit the producer geometry by selecting it in
the table and clicking on the “Geometry”
icon. In the “Producer – Geometry” dialog,
reset X and Y to 0 ft:

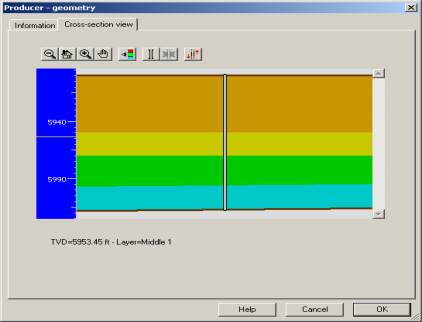

Then move to the “Cross-Section View” and
click on the Adjust Well trajectory button
( ) to correct the well path and make it
intersect the entire reservoir:
Repeat the same operation on the four injectors – manual modification of the coordinates and
trajectory correction – with the following coordinates:
Well X (ft) Y (ft)
Inj NW -4500 4500
Inj NE 4500 4500
Inj SE 4500 -4500
Inj SW -4500 -4500
B01.4 • Well Perforations
Back to the “Reservoir – Wells” dialog select the Producer well in the table and click on
“Perforations”. In the “Producer – Perforations” dialog move to the “Cross-Section View” tab
and use the “Create new perforation” button ( ) to create two perforations as shown below –
the first perforation in the “Middle 2” layer (green), and the second perforation across the two
top layers:
