Rubis Guided Session #3
• Rub
GS03 - 5/22

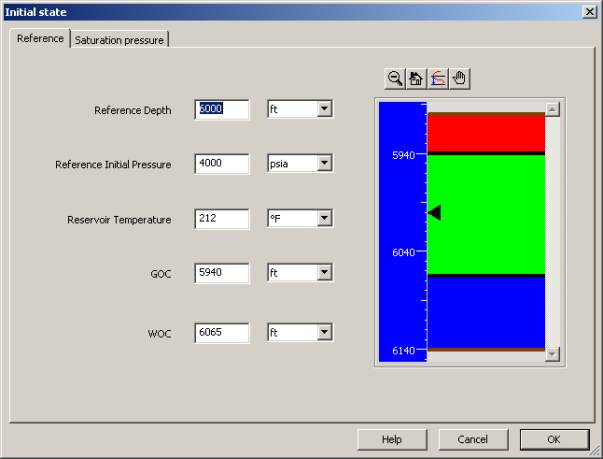

Fig. B01.4 • Initial State dialog
Click on OK to validate, and exit the “Reservoir – Properties” dialog. We do not redefine the
KrPc as we will work with default curves and end-points.
Before moving on with the wells, edit the reservoir contour properties by double-clicking on it
in the 2DMap – the Field contour dialog will show up. The last tab of this dialog displays the
reservoir boundary conditions:

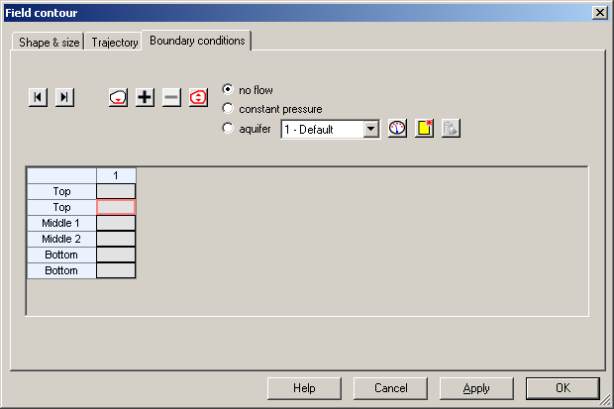

Fig. B01.5 • Reservoir boundary conditions
