Topaze Guided Session #2
•
TopGS02 - 8/12
Click on to edit the display settings.
Fig. B02.5 • 2D plot settings
Choose or confirm Values, Pressure and Interpolated in the Display Tab. Select 7 colors and
click on to choose the method of min-max of the color scale. Pick 'All fields min-max'.
Then click on to run the animation.
The figure below illustrates the animation at field=
440 hrs
.

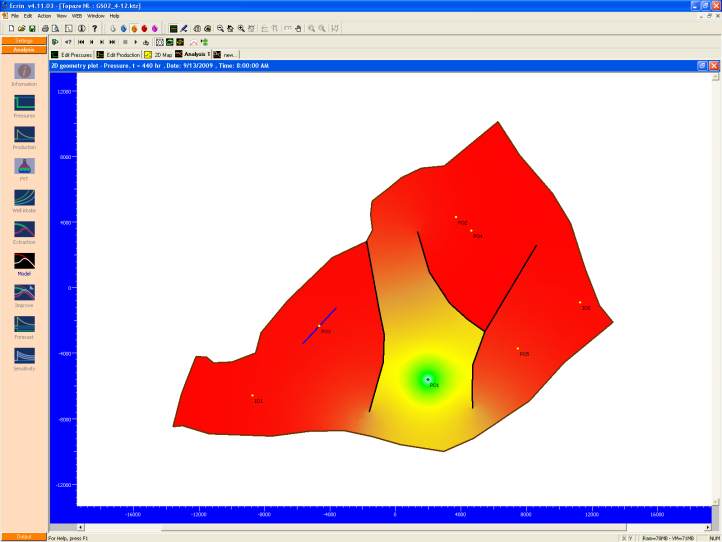

Fig. B02.6 • 2D geometry plot
