Saphir Guided Session #7
• SapGS07
- 7/10
B02.2 • Model Generation
Edit the model dialog by clicking the Model button ( ) in the Interpretation page:

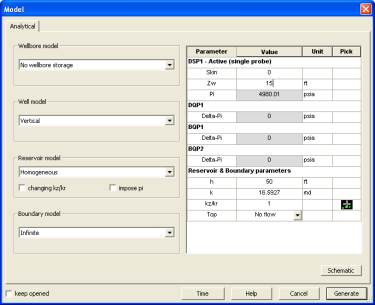

Fig. B02.3 • Model Dialog
In this dialog, change Z
w
to 15 ft – Z
w
is the
distance from the active probe to the
interval bottom. Use the pick option to set
an approximate value for the vertical
anisotropy k
z
/k
r
:
