Saphir Guided Session #7
• SapGS07
- 6/10
B02 • Modeling and Fitting the Data
B02.1 • Data Extraction
Click on Extract dP to get the following dialog:

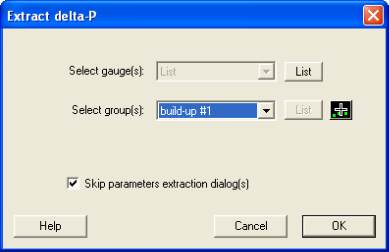

Fig. B02.1 • Extract delta-P Dialog

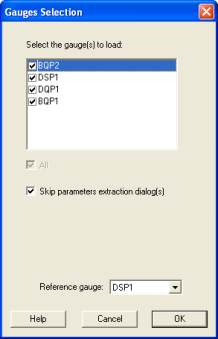

Click on the List button in front of the ‘Select gauge(s)’
menu to check that all available gauges are about to be
included in the extraction step:
Validate all default choices and proceed with data extraction. The 4 gauges are plotted in the
Loglog and Semilog plots, as well as in the History plot:

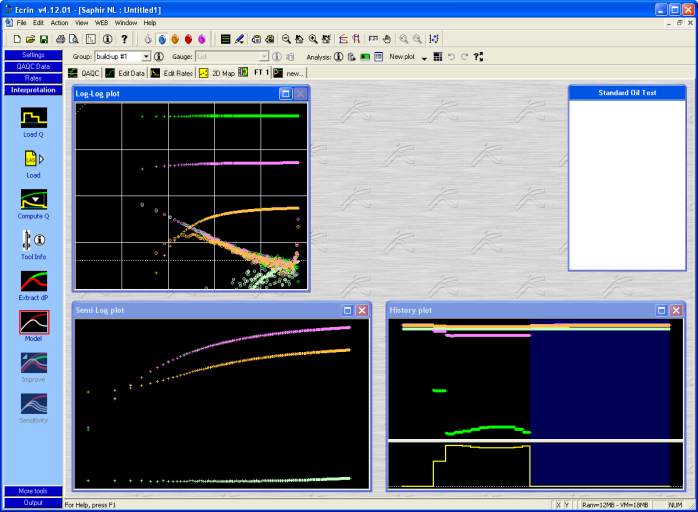

Fig. B02.2 • After Pressure Extraction
