Saphir Guided Session #6
•
SapGS06 - 2/7
B01.1• Numerical 'Interpretation' panel
After the creation of the new project, Saphir switches automatically to the 'Interpretation'
panel and creates
new analysis tab.
Three new buttons are added to the 'Interpretation' panel.
Edit numerical PVT. This PVT is analysis specific.
Edit numerical Kr. Its definition is analysis specific.
Define unconsolidated rock properties.
B01.2 • Analysis specific PVT and Kr
Click on
in the 'Interpretation' panel. This accesses the analysis specific PVT dialog and
you can here change the parameters. Observe that 'Dead Oil' and 'Water' has been carried
over from the document specific PVT defined during start up. In this guided session keep the
default values.
Click on
to define the relative permeability definition for this analysis. In the tab
'KrData' enter the following values:
Swr = 0.1, Sorw = 0.2, Krwo = 1, Krow = 1.
Use the power law model at power
1.65
and
2
respectively for water and oil
with no extrapolation
. See Figure B01.2.

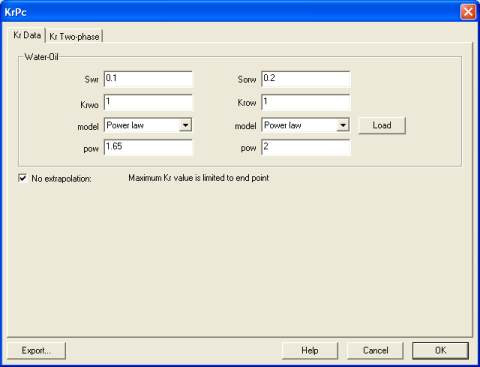

Fig. B01.2 • Relative permeability definition
You can access the plot of the relative permeabilities versus the water saturation by clicking on
the tab 'Kr Two-phase'. Figure B01.3.
