You are then connected to the 'simulated database'.
¾

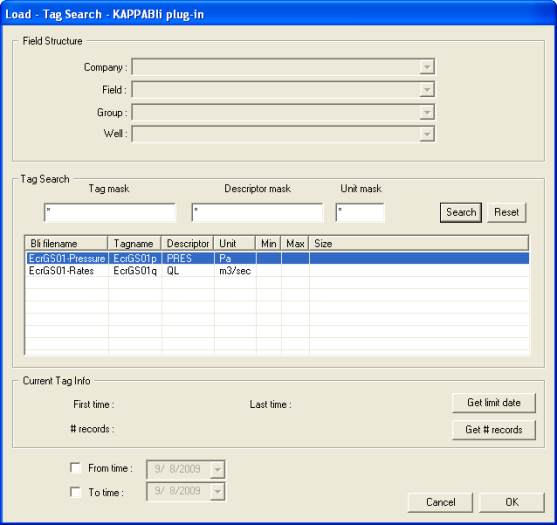

In the 'Tag Search' dialog press on ‘Search’ to display the available tags.
EcrGS01p contains the pressure data and EcrGS01q the production data.
¾
Select EcrGS01p, then press on ‘Get limit date’ and ‘Get # records’ to display the main
statistics of the pressure channel.
¾
Press ‘OK’ to proceed.

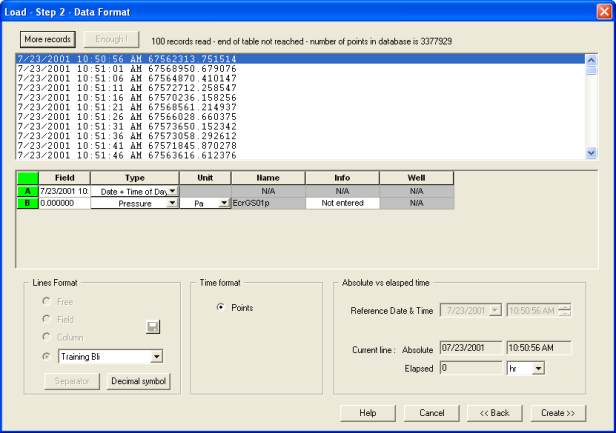

The adequate reading format is already defined since it is included in the database.
¾
Press ‘Create’ to initialize the mirroring process. A message pops up to indicate that you
will need to call ‘Refresh’ to see the progress of the calculation.
