Diamant Guided Session #1
•
DmtGS01 - 2/18
•
As a licensed module, Diamant locally reproduces some of the features of Diamant
Master for the smaller operators, working non-real time and without the sharing
capability of Diamant Master. This session illustrates the local Diamant usage but many
features or concepts apply also to Diamant Master.
The two figures below illustrate the workflow for Diamant (Figure B01.1a) and Diamant Master
(Figure B01.1b).
Fig. B01.1a • Diamant workflow

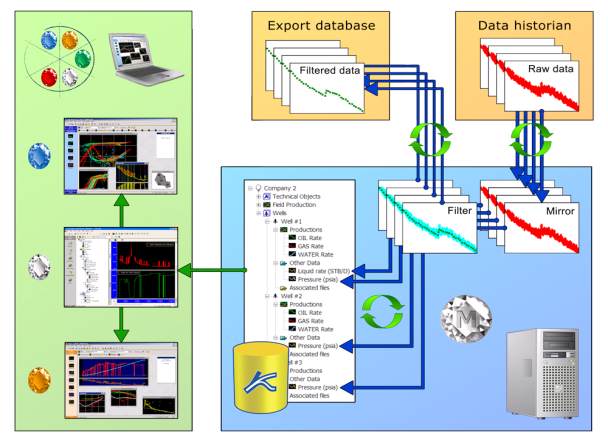

Fig. B01.1b • Diamant Master workflow
B01.2 • Extensive data access and data filtration
Diamant can load data from multiple data sources. From flat files, production databases,
or data historians via tailored plugins. Production may also be read for a group of wells
from DMP2 files.
