Ecrin Guided Session #1
• Ecr
GS01 - 2/37
B01.2 • Requirements
Two data sets for this session are stored in a zip file named 'EcrGS01_v412.zip' which can be
downloaded from the KAPPA site - use the WEB menu in the main menu bar of Ecrin and
choose to connect to Ecrin download.
After unzipping, the files will occupy 100 Mb on the hard
disk. If Ecrin has been installed from a KAPPA CD, the 'EcrGS01_v412.zip' file content must
have been copied from the CD to the Examples subdirectory. The data sets in
EcrGS01_v412.zip are the files EcrGS01-Pressure.kbl and EcrGS01-Rates.kbl. These files are
binary files that characterize the KAPPA BLI format, a format that Diamant uses internally for
mirroring which provides compact fast access data sets.
BLI stands for Binary Large Indexed.
B01.3 • Guided session organization
Section C: Loading and filtering the data in Diamant (=Diamant Guided Session#1);
Section D: Preparing the data for PTA; and
Section E: PTA analysis of the data in Saphir;
Section F: PA analysis of the data and forecast in Topaze;
Note:
By default, the plot ‘Always show scales’ option is on. In this guided session, it has been
turned off (in Settings – Plot Aspects - Plots tab).
C01 • Creating a new Field/Document (Guided Session)
After starting up a new Ecrin session, choose the module that will be the starting point
of the project. The module toolbar
contains all the active applications for
which a license exists. Click on the icon
to start Diamant and choose to start a new project
with a click on the icon . You will then be prompted to enter some field information.
Set the reference date and time
to 22 July 2001 at 07:00:00 (AM).

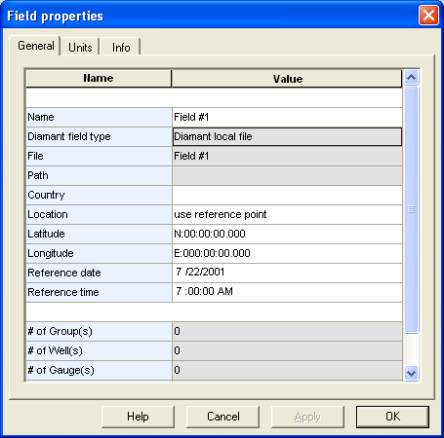

Fig. C01.1 Startup screen
