Amethyste Guided Session #1
• Ame
GS01 - 15/19

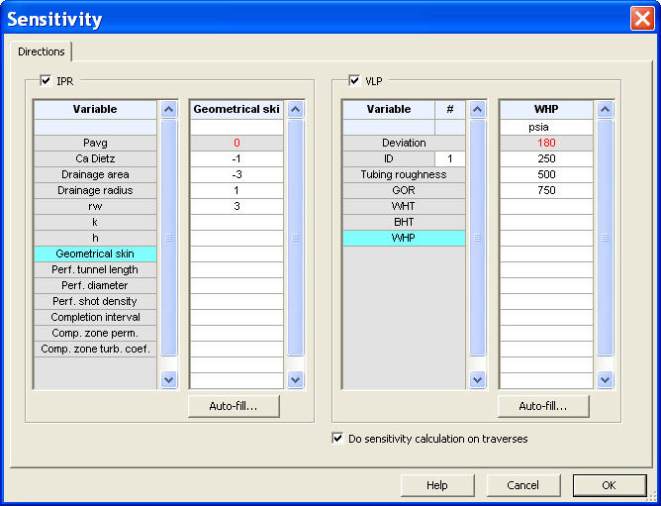

Fig. F01.1. • Sensitivity dialog
On OK, two sensitivity plots are created: a WPA sensitivity plot and a traverses sensitivity plot.

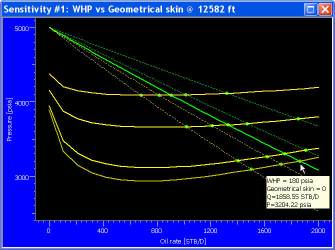

In the WPA sensitivity plot, the intersections are highlighted and the corresponding values
displayed when placing the cursor on the intersection points.
Fig. F01.2 • Sensitivity WPA plot
