Rubis Guided Session #4
• Rub

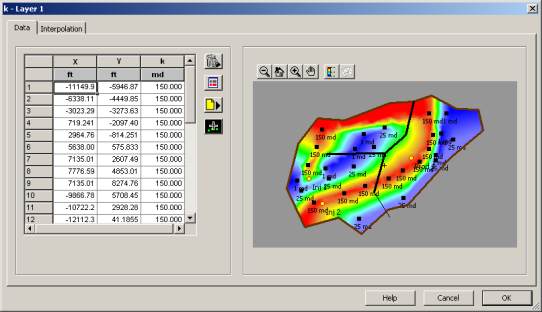

This is to be compared with the same
dialog visible in the original Rubis file -
note that the data point coordinates
have changed: the 2DMap origin has
been moved during the transfer of the
Rubis sector in order to have it coincide
with the tested well in the final Saphir
document.
Similarly, it is possible to edit the perforations and the wellbore model of all wells in the Wells
option. Note that the Geometry and Data icons are not accessible anymore, as both geometry
and data have been carried over from Rubis upon the sector creation.
The Controls icon is not accessible either in
the Wells dialog, but well controls may still be
edited in the Wells controls page of the Run
Settings dialog (
):
In the Time stepping control page, change
the End of simulation to 4500 hr, and modify
the output fields time period to 450 hr:
