Rubis Guided Session #3
• Rub
GS03 - 13/22
B02 • Simulating the Base Case Scenario
B02.1 • Grid Construction and Run Settings
Click on the “Grid” button in the “Simulation” page and accept all default settings to go ahead
with grid construction:

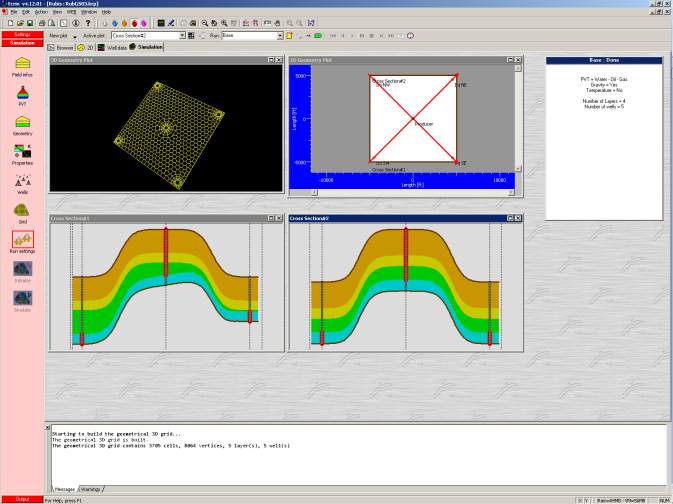

Fig. B02.1 • After grid construction
Edit the “Simulation – Run Settings” dialog.
In the first tab (“Time Settings”), check
that the simulation end date is set to
December 31
st
, 2019:
Move now to the “Results” tab, and change
the “time period” of the “Field Results” to 150
days:
In the same tab, specify that we wish to
output the reservoir total oil cumulative
production and the global water influx (water
coming from the aquifer) by checking the
“Qo” and “Water Influx” nodes under the
“Global results”:
Click on OK to validate all changes.
