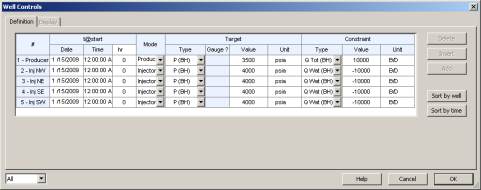

Fig. B01.8 • Well controls
Click on OK to validate all changes – and exit the “Reservoir – Wells” dialog.
B01.6 • Viewing the Reservoir Geometry
Before the simulation, we can visually check the current definitions. Draw two cross-sections
( ) in the 2DMap, the first one crossing the reservoir from SW to NE and the second one
from NW to SE – make sure that the cross-sections pass through the wells:

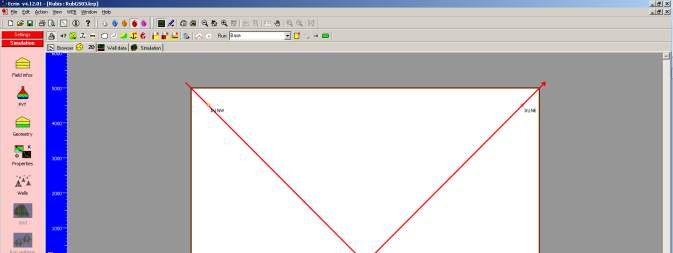

Fig. B01.9 • Cross-sections drawn in the 2DMap
Double click on each cross-section to view it and click on to visualize the fluid contacts:
