Rubis Guided Session #2
In the first tab change the fast modeling factor
to 10%:
Move on to the “Results” tab and in the
left-hand side tree check the “Results Logs”
node, meaning that we wish to output well logs:
Click on the “Result Logs” node in the tree, and
in the table located in the bottom-right corner
change the output time period to 100 hrs,
meaning that 15 output logs will be output over
the 1500 hrs simulation:
Click on OK to validate the changes, proceed with “Initialize”, and run the simulation.
B02.3 • Visualizing the Model Results

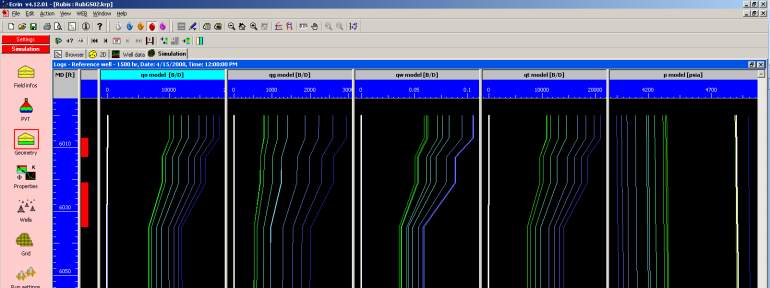

Maximize the “Logs – Reference well” plot:

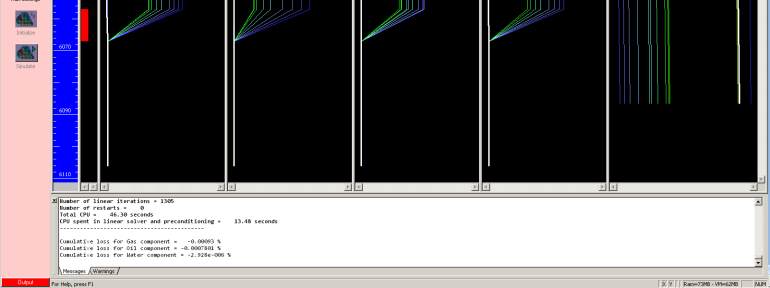

Fig. B02.9 • Output logs plot
