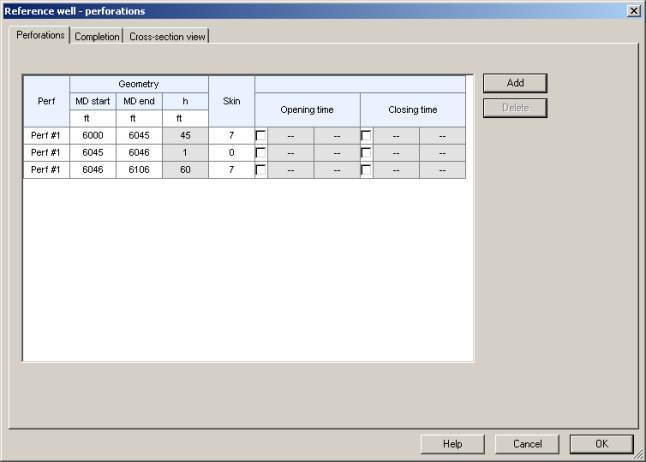

Fig. B02.5 • Well perforations dialog, Perforations tab
Since the well was fully perforated in Topaze the copied well in Rubis was initialized with
3 perforations covering all layers. This does not correspond to the “reality”, as the actual
perforations stand at the following measured depths:
Perf #1:
MD start = 6007 ft
MD end = 6013 ft
Perf #2:
MD start = 6021 ft
MD end = 6035 ft
Perf #3:
MD start = 6057 ft
MD end = 6067 ft
Reset as well all skin values to 0.
Make the requested modifications in the “Perforations” tab and move to the “Cross-Section
View” to visualize the new configuration:

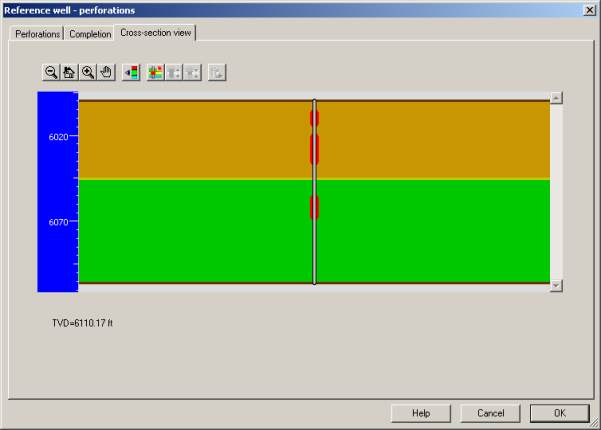

Fig. B02.6 • Well perforations dialog, Cross-Section View tab
