Topaze Guided Session #4
•
TopGS04 - 10/16
Accept the default to create a well of type Producer 1 starting in January 2012. Similarly,
create two new wells of the same type (Producer 1) starting respectively in February and
March 2012. Add now 3 producers of type Producer 2, starting respectively in January,
February and March 2015. The Topaze main screen will then be showing a non-zero field
production:

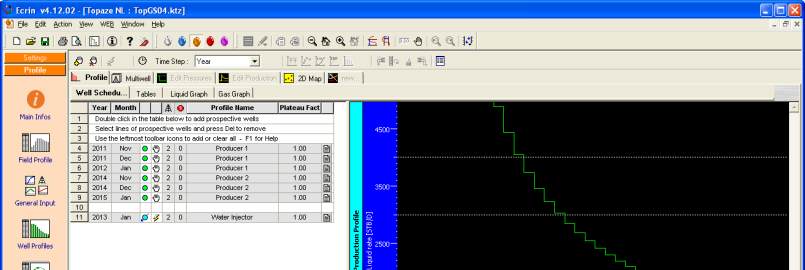

Fig. B12 • Topaze main screen after the creation of the 6 producers
The program has added the six wells plus a water injector. The number of injectors is
determined automatically, following the parameters in the tab for Gas/Water Usage under
General Input. In case a mistake was made while entering the well schedules, this can be
corrected by clicking on the button in the appropriate well line in the spreadsheet.
The total field forecast, including the water and the gas production, is recomputed as soon as a
new well is added or modified and can be visualized in tabular or graphical formats, as can be
seen below:
