Topaze Guided Session #3
•
TopGS03 - 4/16
If you visit the Test information dialog ( ) you will also check that the document reference
date and time have been reset:
The Multiwell tab displays a browser listing all wells as well as the pressure / rate data
contained in each well. If you select a given node you can view the associated content in a plot
or in tabular format by clicking on the corresponding option in the toolbar of the right-hand
side pane.
For instance, click on the well
‘SOUTH-P “F9’ in the left-hand side
browser:

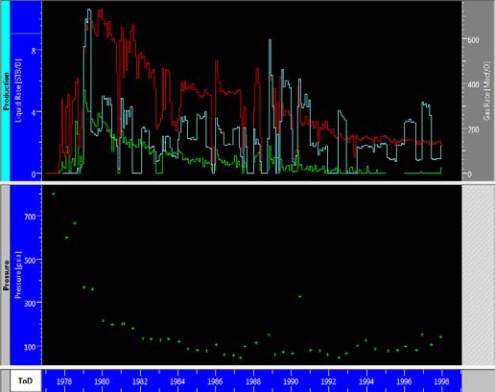

Click on the ‘View plot’ option ( )
to view all data contained in that
well:
Click now on the ‘View table’ option
( ) to edit all data in a tabular
format:
Individual pressure gauges and productions may be edited in the Edit Pressures and Edit
Production tabs – just like in single well documents.
