Topaze Guided Session #3
•
TopGS03 - 10/16
B03 • Analysis of Well GAS UNIT-A4
We will now proceed with the analysis of another well in the same document. In the Multiwell
tab, select the gas phase of the well ‘GAS UNIT-A4’ and click on analyze. In the following
dialog (‘Analysis information’) choose to initialize the PVT from the already existing analysis
‘SOUTH-P “F9_G_1’:
Click on OK to create the analysis:

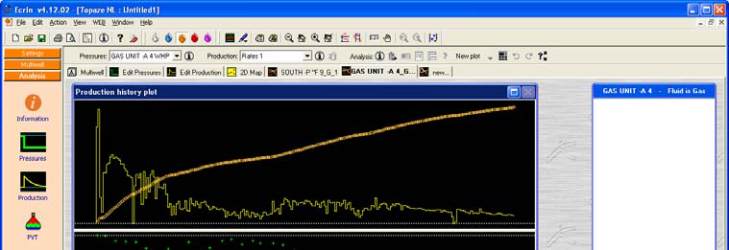

Fig. B03.1 • Analysis created on the gas phase production of GAS UNIT-A4
Extract the data between 6825 and 8766 days, with an initial pressure of 640 psia. Perform an
auto-model and an auto-improve to match the gas rates with an analytical solution simulating
a vertical well centered in a circular reservoir:
Fig. B03.2 • Final rate match on well GAS UNIT-A4
The production forecast at this well will not be performed now but in a later step (while
building the field profile).
