Topaze Guided Session #3
•
TopGS03 - 3/16
This dialog displays an information summary of the data contained in the DMP2 file: number of
wells, well names and coordinates, number of rate and pressure data associated to each well.
Click on Import to complete the load - the 10 wells contained in the data file are now visible:

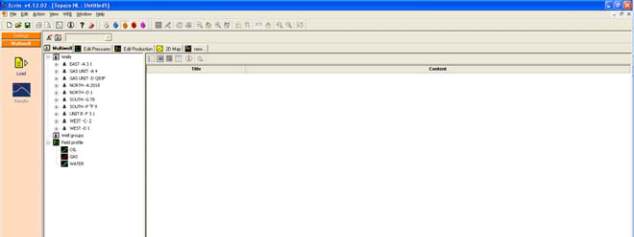

Fig. B01.4 • Multiwell tab after the load of the DMP2 file
Move to the 2DMap tab in order to check that all wells have been loaded and that their relative
positions have been set (the field contour has been reset to include all wells):

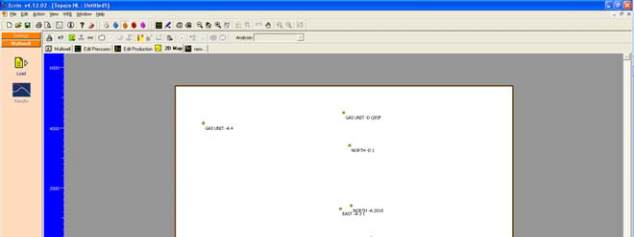

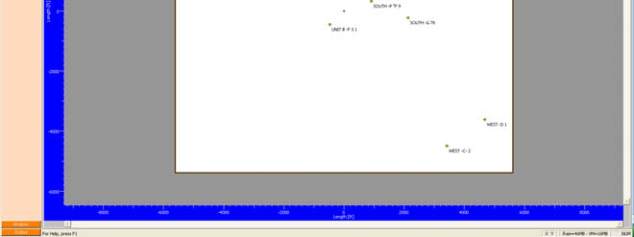

Fig. B01.5 • 2DMap tab after the load of the DMP2 file
