Saphir Guided Session #2
• Sa
pGS02 - 4/8

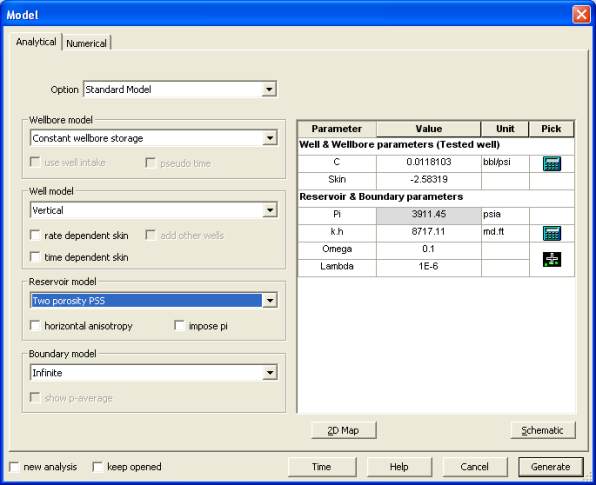

The next natural step is to define the model manually. Select the Model dialog and choose
the reservoir model to be Two Porosity PSS. Figure B01.5.
Fig. B01.5 • Model dialog

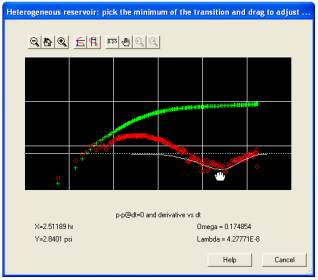

To estimate the values for Omega and Lambda we will use the pick option
, move the
mouse to fit the valley of the double porosity response as seen in Figure B01.6.
Fig. B01.6 • Pick option
Note that setting the IARF at the proper level is critical for the pick option to work.
